Cooler Master MasterCase H500M

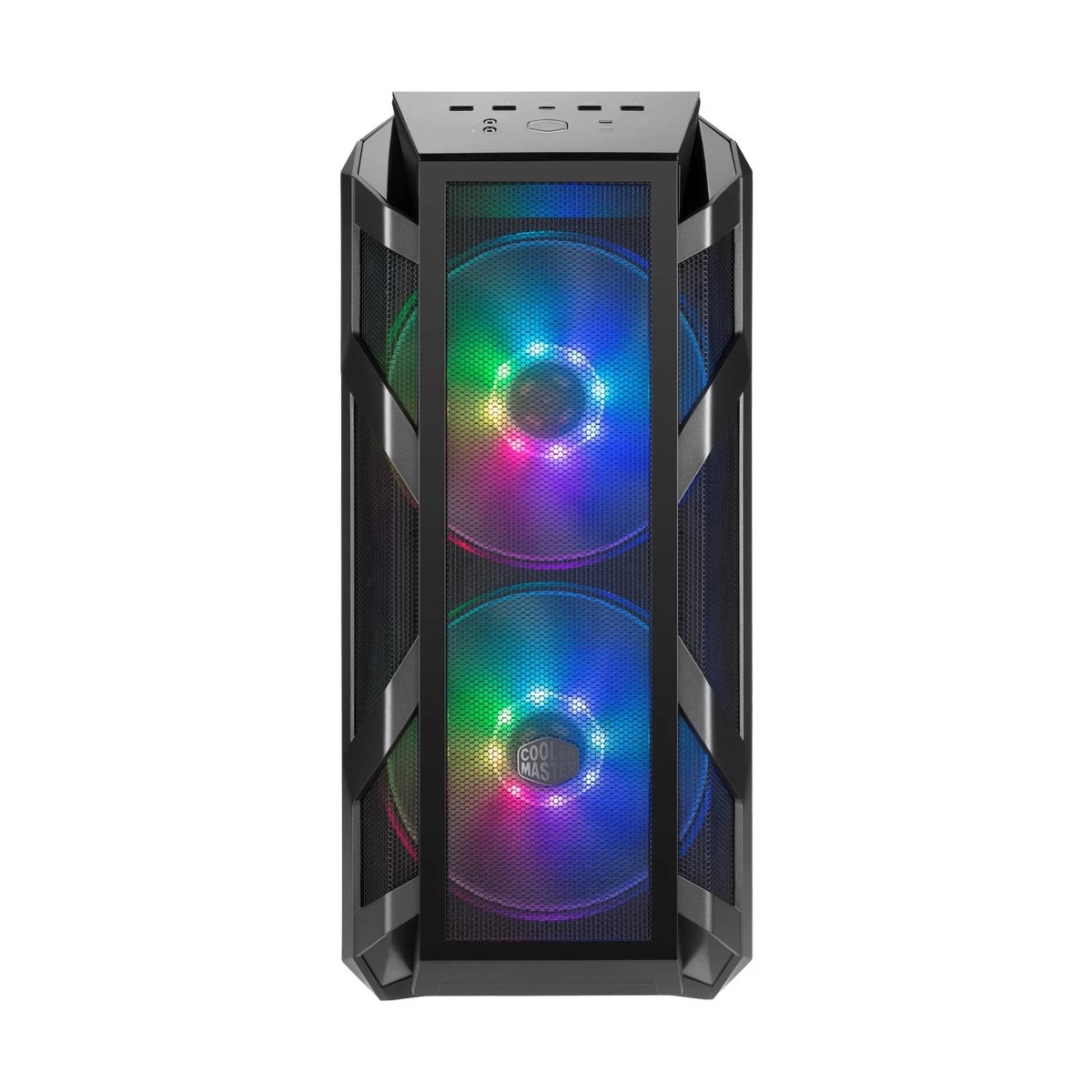

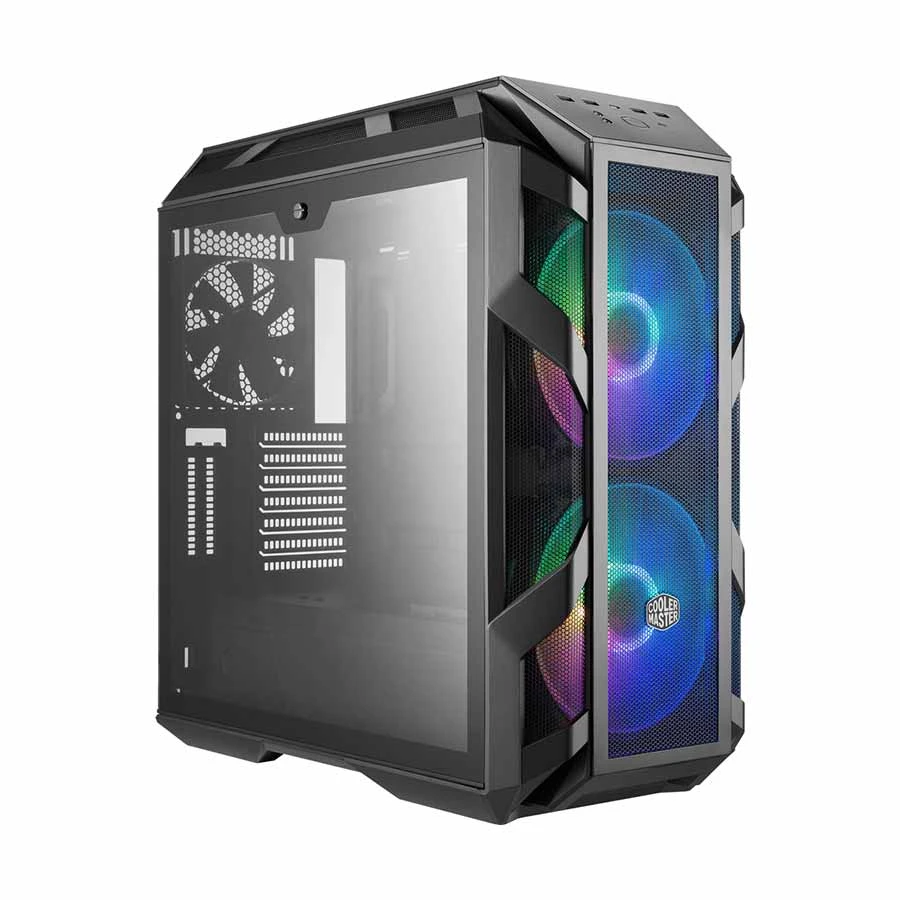

The Flagship of High-Airflow Performance. The Cooler Master MasterCase H500M (MCM-H500M-IHNN-S00) is a premium flagship mid-tower designed for enthusiasts who refuse to compromise between aesthetics and thermal efficiency. Building on the heritage of the H-Series, the H500M features four tempered glass panels and two massive 200mm ARGB fans. Unique to the “M” flagship model is the inclusion of both a tempered glass front panel and a mesh front panel in the box, giving you the ultimate choice between a crystal-clear showcase or maximum airflow performance.

Key Features

Dual 200mm ARGB Fans & Controller: The front of the chassis is dominated by two massive 200mm Addressable RGB fans. These move substantial volumes of air at low noise levels. An included ARGB controller allows for complete lighting customization out of the box.
Interchangeable Front Panels: Choose your priority. Use the Mesh front panel for maximum high-airflow cooling performance, or swap it for the Tempered Glass panel for a seamless, high-end aesthetic.
Four Tempered Glass Panels: The side panels, top panel, and front panel are all crafted from high-quality tempered glass, providing a panoramic view of your internal components and lighting effects.
USB 3.1 (Gen 2) Type-C Port: The advanced I/O panel includes a high-speed USB-C port, alongside four USB 3.0 ports, providing modern connectivity for the latest peripherals and fast data transfer.
Integrated GPU Support Arm: To prevent “GPU sag” from heavy modern graphics cards, the H500M features a built-in, adjustable support arm to keep your hardware perfectly level and secure.
Comprehensive Cable Covers: Achieve a professional-grade interior with a total of nine different covers. This includes a PSU shroud and a clean cable management system that hides almost all visible wiring from both the front and back of the motherboard tray.
Extensive Liquid Cooling Support: The chassis is a water-cooling powerhouse, supporting radiators up to 360mm on both the top and the front, providing the thermal headroom needed for overclocked, high-TDP systems.

Technical Specifications

Feature	Specification
Model Number	MCM-H500M-IHNN-S00
Materials	Steel, Mesh, Plastic, Tempered Glass (4 Panels)
Dimensions (L x W x H)	544 x 248 x 546 mm
Motherboard Support	E-ATX (up to 12″ x 10.7″), ATX, Micro-ATX, Mini-ITX
Expansion Slots	7 + 2 (Vertical GPU Support)
Drive Bays	2x 2.5″/3.5″ Combo, 6x 2.5″ SSD
I/O Panel	1x USB 3.1 Type-C, 4x USB 3.0, Audio In/Out, ARGB Button
Pre-installed Fans	Front: 2x 200mm ARGB; Rear: 1x 140mm (1200 RPM)
Fan Support	Front: 3x 120/140mm or 2x 200mm; Top: 3x 120/140mm or 2x 200mm; Rear: 1x 120/140mm
Radiator Support	Front: Up to 360mm; Top: Up to 360mm; Rear: 120/140mm
Max GPU Length	412 mm
Max CPU Cooler Height	190 mm

The Definitive Standard for Enthusiast Builds

The MasterCase H500M is engineered for the builder who views their PC as the ultimate centerpiece. By combining professional cable management, high-speed modern connectivity, and the unique flexibility of interchangeable front panels, Cooler Master has created a chassis that excels in every category. Whether you are building a high-end gaming machine or a powerful professional workstation, the H500M provides the rigid stability and thermal capacity to support the world’s most demanding hardware.

Flagship versatility, massive intake volume, and a flawless glass finish.

$200.00
